CSS grid Property

The grid property is a shorthand property for the following properties:

The explicit grid properties (grid-template-rows, grid-template-areas, grid-template-columns) or implicit grid properties (grid-auto-rows, grid-auto-columns, grid-auto-flow) can be specified only in one grid declaration. Non-specified sub-properties are set to their initial value.

Initial Value	none none none auto auto row
Applies to	Grid containers.
Inherited	No.
Animatable	Yes. Grid layout is animatable.
Version	CSS Grid Layout Module Level 1
DOM Syntax	Object.style.grid = "150px / auto auto auto";

Syntax

grid: none | grid-template-rows / grid-template-columns | grid-template-areas | grid-template-rows / [grid-auto-flow] grid-auto-columns | [grid-auto-flow] grid-auto-rows / grid-template-columns | initial | inherit;

Example of the grid property:

<!DOCTYPE html>
<html>
  <head>
    <title>Title of the document</title>
    <style>
      .grid-container {
        display: grid;
        grid-template-columns: auto auto auto;
        background-color: #ccc;
        padding: 10px;
      }
      .grid-box {
        background-color: #eee;
        border: 1px solid rgba(0, 0, 0, 0.8);
        padding: 30px;
        font-size: 30px;
        text-align: center;
      }
    </style>
  </head>
  <body>
    <h2>Grid property example</h2>
    <div class="grid-container">
      <div class="grid-box">1</div>
      <div class="grid-box">2</div>
      <div class="grid-box">3</div>
      <div class="grid-box">4</div>
      <div class="grid-box">5</div>
      <div class="grid-box">6</div>
      <div class="grid-box">7</div>
      <div class="grid-box">8</div>
      <div class="grid-box">9</div>
    </div>
  </body>
</html>

Try it Yourself »

Example of the grid property with the "grid-auto-flow" value:

<!DOCTYPE html>
<html>
  <head>
    <title>Title of the document</title>
    <style>
      .grid-container {
        display: grid;
        grid-template-columns: auto auto auto;
        grid-template-rows: auto auto;
        grid-gap: 5px;
        background-color: #1c87c9;
        padding: 10px;
        grid-auto-flow: column;
      }
      .grid-container > div {
        background-color: rgba(255, 255, 255, 0.8);
        text-align: center;
        padding: 20px 0;
        font-size: 20px;
      }
    </style>
  </head>
  <body>
    <h2>Grid property example</h2>
    <div class="grid-container">
      <div class="grid-box1">1</div>
      <div class="grid-box2">2</div>
      <div class="grid-box3">3</div>
      <div class="grid-box4">4</div>
    </div>
  </body>
</html>

Try it Yourself »

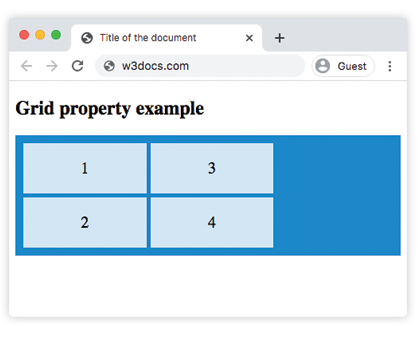

Result

Example of the grid property with the size of rows set as "100px":

<!DOCTYPE html>
<html>
  <head>
    <title>Title of the document</title>
    <style>
      .grid-box1 {
        grid-area: 1 / 1 / 2 / 2;
      }
      .grid-box2 {
        grid-area: 1 / 2 / 2 / 3;
      }
      .grid-box3 {
        grid-area: 1 / 3 / 2 / 4;
      }
      .grid-box4 {
        grid-area: 2 / 1 / 3 / 2;
      }
      .grid-box5 {
        grid-area: 2 / 2 / 3 / 3;
      }
      .grid-box6 {
        grid-area: 2 / 3 / 3 / 4;
      }
      .grid-container {
        display: grid;
        grid-auto-rows: 100px;
        grid-gap: 10px;
        background-color: #1c87c9;
        padding: 10px;
      }
      .grid-container > div {
        background-color: #eee;
        text-align: center;
        padding: 20px 0;
        font-size: 25px;
      }
    </style>
  </head>
  <body>
    <h2>Grid property example</h2>
    <div class="grid-container">
      <div class="grid-box1">1</div>
      <div class="grid-box2">2</div>
      <div class="grid-box3">3</div>
      <div class="grid-box4">4</div>
      <div class="grid-box5">5</div>
      <div class="grid-box6">6</div>
    </div>
  </body>
</html>

Try it Yourself »

Values

Value	Description	Play it
none	The size of the columns and rows is not specified. This is the default value of this property.
grid-template rows / grid-template-columns	The size of the columns and rows is specified.	Play it »
grid-template-areas	The grid layout is specified by using named items.	Play it »
grid-template rows / grid-auto-columns	The size of the rows, and the auto size of the columns are specified.
grid-auto-rows / grid-template-columns	The auto size of the rows , is specified and the grid-template-columns property is set.
grid-template rows / grid-auto-flow grid-auto-columns	The grid layout is specified by using named items.
grid-auto flow grid-auto-rows / grid-template-columns	Specifies how to place auto-placed items, and the auto size of the rows, and sets the grid-template-columns property.
initial	Makes the property use its default value.
inherit	Inherits the property from its parents element.
