The clip property allows a rectangle to clip a positioned element. The rectangle is specified as four coordinates: top, right, bottom, left. The values of top and bottom specify offsets from the inside top border edge of the box, while the values of right and left specify offsets from the inside left border edge of the box. All four sides may be either a length or auto. "Auto" is the default value.
The clip property does not work if the value of the overflow property is set to visible.
If possible the newer clip-path property can be used instead because the clip property is deprecated.
Initial Value | auto |
Applies to | "Absolutely" positioned elements. |
Inherited | No. |
Animatable | Yes. Background-color is animatable. |
Version | CSS2 |
DOM Syntax | object.style.clip = "rect(10px,40px,40px,10px)"; |
Syntax
clip: auto | shape | initial | inherit;
Example of the clip property:
<!DOCTYPE html>
<html>
<head>
<title>Title of the document</title>
<style>
img {
position: absolute;
clip: auto;
}
</style>
</head>
<body>
<img src="/uploads/media/default/0001/01/003e5c463668d174ab70bea245c192d81901a4a6.png" alt="W3docs.com">
</body>
</html>

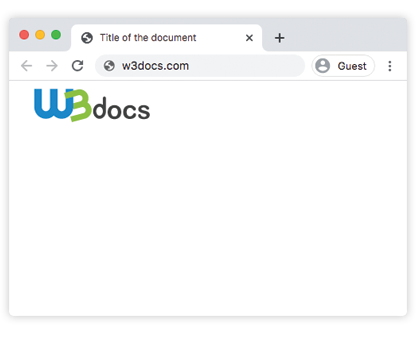

Result
In the following example the rectangle clips the image according to the set values.
Example of the clip property with the "rect" value:
<!DOCTYPE html>
<html>
<head>
<title>Title of the document</title>
<style>
img {
position: absolute;
clip: rect(0px, 70px, 200px, 0px);
}
</style>
</head>
<body>
<img src="/uploads/media/default/0001/01/003e5c463668d174ab70bea245c192d81901a4a6.png" alt="W3docs.com logo">
</body>
</html>
Values
Value | Description | Play it |
---|---|---|
auto | Does not clip an element. This is defautl value. | Play it » |
shape | Clips an element. The only valid value is: rect (top, right, bottom, left). | Play it » |
initial | It makes the property use its default value. | Play it » |
inherit | It inherits the property from its parents element. |
Browser support
1.0+ | 12.0+ | 1.0+ | 1.0+ | 7.0+ |
